Bending Machinery－All Electric Solution

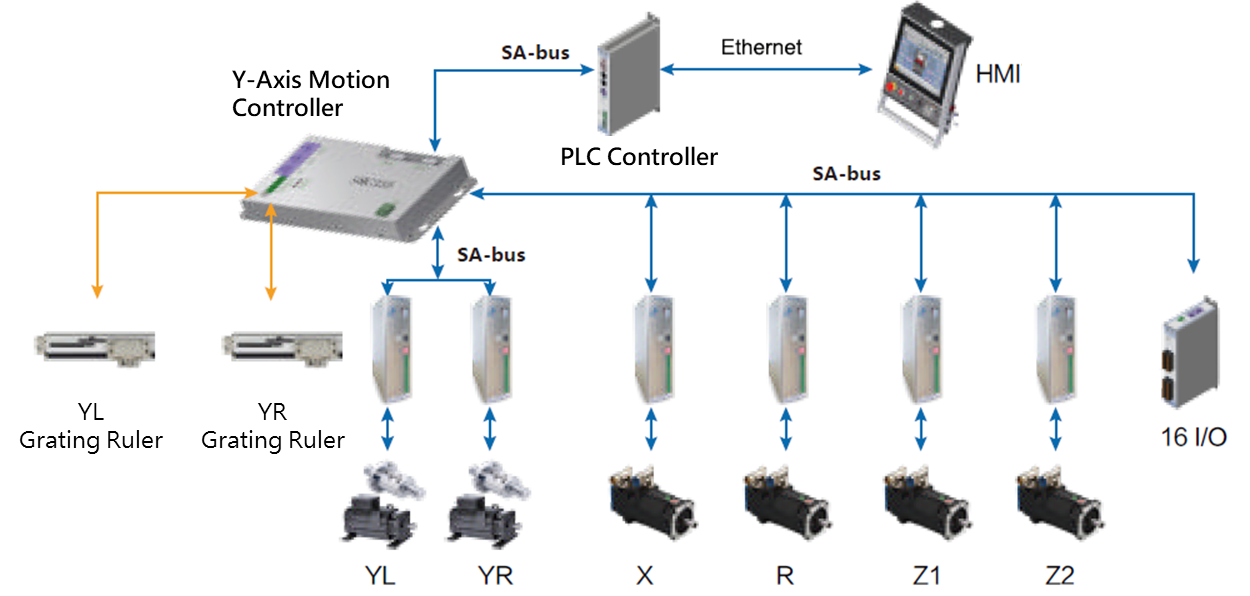

Drawing from the application technology of Japanese bending machines, Techmation has developed an all-electric system solution for bending machines. The solution includes a control system, drivers, servo motors, ball screws, driving pulley and other parts, which can support the control of 3 to 10 axis. The solution adopts Japanese or Taiwan  ball screws with high pushing force, which can be applied to models of 160T at most. Full digital communication (SA bus communication/CAN communication bus) of the control system and drive units ensures excellent control accuracy and stability.



Featur

1. Linux operating system which is safe, efficient and stable.
2. Standard IEC61131-3 PLC program, external IO, AD and DA expansion.
3. High speed SA-bus communication and CAN communication bus, ensuring control accuracy.
4. Specialized motion control card used in Y-axis with two-axis synchronization, high synchronization accuracy, fast response, stable speed, positioning and repetition accuracy reaches 0.005mm.
5. Standard six axis (Y1, Y2, X1, R1, Z1, Z2) , which can be expanded according to the models.
6. Smart setting of parameters, guiding quick and accurate commissioning.
7. A 12/15 inch industrial capacitive screen, which is more friendly and responsive.
8. Optional wattmeter, with digital communication and real-time energy consumption statistics.
9. Optional function of networking, Industry 4.0, remote diagnosis, remote monitoring and technical support.
