Bending Machinery - Electro-Hydraulic Servo Solution &  Pump-Control Servo Solution

The solution is a combination of the servo driver, the permanent magnet synchronous motor and the internal gear pump, which is remarkably energy-saving with fast response and good control performance. The excellent combination of the servo system and our controllers could realize different control schemes such as multi-axis linkage or simultaneous motion. It could improve the operation efficiency, reduce the energy consumption, and improve the accuracy and stability.


Feature

1. EtherCAT communication and CAN communication bus, with good accuracy of instant communication.
2. High performance servo system with fast response and good stability.
3. Specialized controller for electro-hydraulic servo bending machines, integration of IO/AD/DA /position transducers and other functions; DC24V output; push the valve without  amplifier boards.

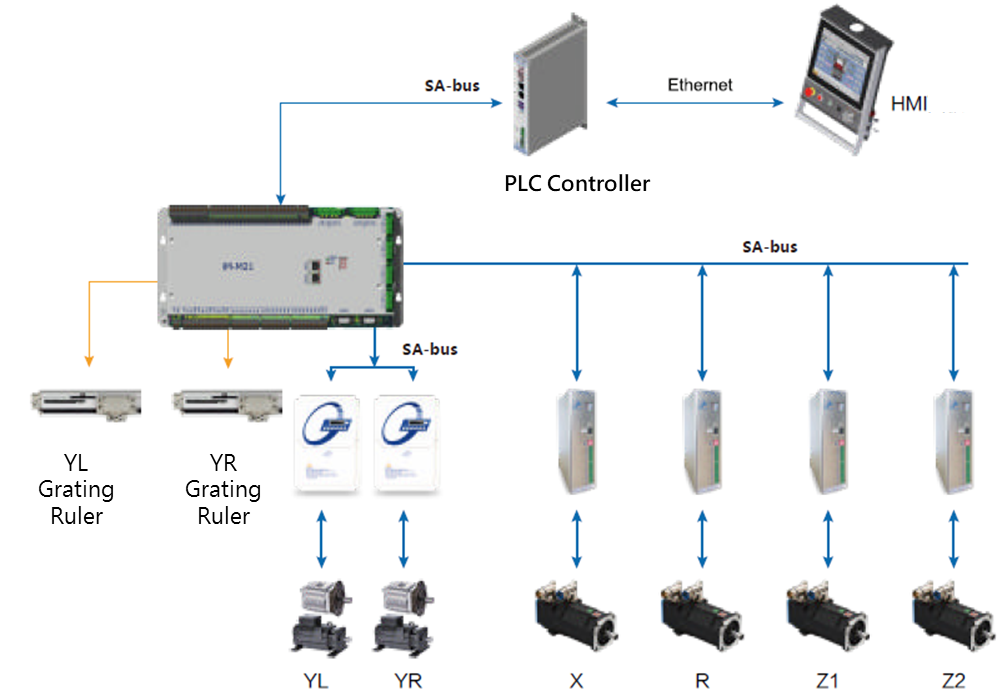

4. Structure of pump-controlled servo bending machine :



Technical Feature

1. The driver supports multiple control methods including closed loop control of pressure, closed loop control of speed, multistage speed and etc.
2. The driver has its own closed-loop algorithm of pressure, which can automatically adjust the motor speed when the pressure reaches the set value. Compared with other methods that rely on safety valve and  pressure relief valve, it is more energy-saving, accurate and stable.
3. The process and program of the bending machine are basically the same as those of the all electric bending machine. Please refer to the previous introduction.
